How to Design Snap-Fit 3D-Printed Parts
Snap-fit joints are a practical way to assemble 3D-printed parts without screws, glue, or tools. These connections rely on flexible features, like cantilevers or hooks, that temporarily deform during assembly and snap back into place to create a secure fit. Their benefits include cost savings, faster assembly, and reusability, especially for modular designs or customizable accessories.
Key Takeaways:
- Types of Snap-Fits: Cantilever (most common), annular (cylindrical parts), and torsional (twisting motion).
- Material Selection: Nylon and TPU are ideal for flexibility and durability, while PLA is brittle and less suited.
- Printer Tolerances: SLA/SLS printers work with clearances around 0.4 mm; FDM printers need 1.5–2.0 mm due to warping risks.
-
Design Tips:
- Use tapered cantilevers for stress distribution.
- Add fillets at the base to reduce cracking.
- Orient layers parallel to bending forces for strength.
- Prototyping: Test and adjust tolerances iteratively to balance secure fits and ease of assembly.
Snap-fit designs are perfect for creating modular systems, gaming accessories, or parts requiring frequent assembly and disassembly. By focusing on proper material selection, stress management, and precise tolerances, you can achieve durable and functional snap-fit connections for a variety of applications.
How to Design a Snap Fit Joint - 3D Printing - Fusion 360 Tutorial (Raspberry Pi)

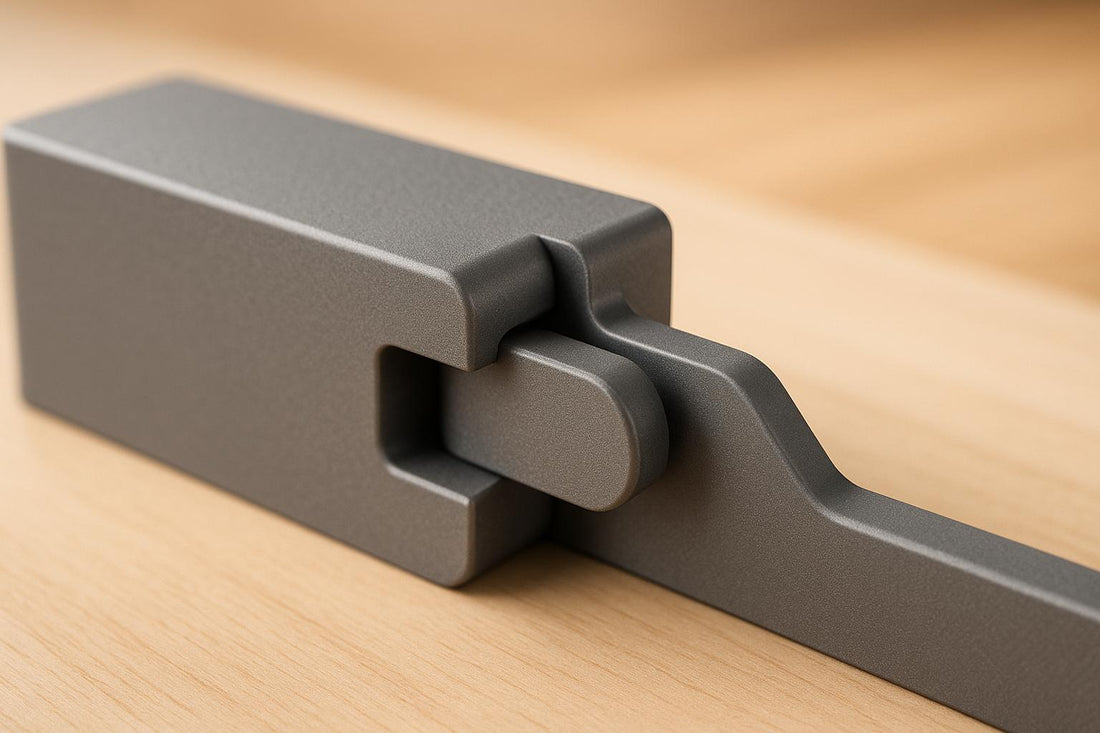

Core Design Principles for Snap-Fit Joints
Designing reliable snap-fit joints requires careful attention to stress distribution, material choices, and manufacturing considerations. Below, we’ll explore the essential elements that contribute to durable and efficient snap-fit designs.
Tapering and Stress Distribution
A well-tapered cantilever beam helps distribute stress evenly across the joint, reducing the risk of concentrated stress points at the base. This approach not only minimizes material usage but also allows the joint to flex naturally, lowering the chances of cracking over time.
Including a fillet at the base of the cantilever further enhances durability. A recommended fillet radius is at least half the thickness of the cantilever’s base, which helps spread out the stress and strengthens the connection.
Width is another critical factor. To ensure a balance between strength and flexibility, the clip width should be increased to at least 5 mm. This design ensures that deflection occurs only during assembly, reducing long-term stress and material fatigue.
Material Selection for Snap-Fit Joints
The choice of material can make or break the performance of a snap-fit joint. Flexible and fatigue-resistant materials, such as nylon and TPU, are ideal because they can bend repeatedly without cracking. On the other hand, materials like standard PLA are less suited for snap-fit applications due to their brittle nature and tendency to fail under stress.
When selecting a material, consider factors like stiffness requirements, environmental conditions, and compatibility with your 3D printing process. Additionally, maintaining a deflection-to-length ratio of 1:8 is recommended for reliable performance. Combined with proper build orientation, these choices ensure snap-fit joints remain durable through repeated use.
Build Orientation and Layer Strength
The strength of 3D-printed snap-fit joints heavily depends on build orientation. To maximize durability and minimize the risk of delamination, orient the cantilever layers parallel to the bending direction. Avoid printing snap-fit features in the z-direction, as this orientation is inherently weaker when subjected to bending forces.
For best results, use 100% infill in snap-fit regions to prevent breakage during bending. If printing the entire part with maximum infill isn’t feasible, many slicing tools offer support blockers, allowing you to selectively increase infill density in specific areas like snap-fit features. This approach balances material efficiency with the need for strength.
| Printing Technology | Recommended Tolerance | Warping Risk | Best Materials |
|---|---|---|---|
| SLA/SLS | 0.4 mm | Low | Flexible resins, Nylon |
| FDM | 1.5–2.0 mm | Higher | TPU, Nylon, PETG |
Designing for Precision and Durability
When it comes to creating reliable snap-fit designs, precision and durability are non-negotiable. Achieving the right clearances is the difference between a joint that clicks together seamlessly and one that’s either too loose or frustratingly tight. To get it right, you need to focus on precise clearances and thorough testing.
Maintaining Proper Clearances
Clearances are the backbone of any successful snap-fit design. The specific clearance required depends on your 3D printing method and the dimensional accuracy of the printer. For example:
- SLA and SLS printers: These can handle clearances of about 0.4 mm with consistent accuracy.
- FDM printers: Due to potential warping and lower precision, these printers typically need 1.5–2.0 mm clearances.
The first step is understanding your printer's capabilities and how your material behaves. Design each part individually and incorporate gaps that align with your printer’s resolution, while also accounting for material expansion or contraction during the printing process.
The goal is to find the balance where joints are secure enough to hold firmly but loose enough for easy assembly. For components that will be frequently taken apart, opt for looser tolerances. On the other hand, permanent assemblies can use tighter fits to maximize strength. Once designed, these clearances must be tested to ensure they meet both functional and usability requirements.
Prototyping and Testing
While calculations and simulations are helpful, nothing beats real-world testing. Iterative prototyping is essential to fine-tune clearances for your specific printer and material. This hands-on process helps you identify and correct potential issues before mass production.
Start by assembling and disassembling the parts repeatedly. Pay close attention to how much force is needed - it should feel secure but not require excessive effort, which could risk breaking the joint. Look for signs of stress, like whitening in the material or small cracks forming at high-stress points.
During testing, measure the actual force required at critical points. Simple mechanical tests can provide insights into deflection and the force needed for assembly. If the joint feels too tight, adjust the clearance in your next iteration. If it’s too loose, reduce the gap to improve the fit.
For parts that will be disassembled often, design for ease of disassembly. Avoid using more than three snap-fits in a single assembly, as this can make removal tricky and increase the risk of damage. Ensure the snap-fits are accessible and allow for easy disengagement without applying too much force.
Also, consider how post-processing methods like coating or vapor smoothing might alter dimensions. Always re-test your design after these steps to confirm the fit and functionality remain intact.
Finally, evaluate how the design holds up under repeated use. A snap-fit that works perfectly the first time might fail after multiple cycles if the material fatigues or the geometry channels stress improperly. Use flexible materials and ensure the joint geometry supports repeated bending without causing damage.
The process is simple: print, test, measure, adjust, and repeat. This iterative approach saves time and prevents costly issues down the line, ensuring your snap-fit design is ready to perform as expected.
sbb-itb-c5cd7d3
Using Snap-Fit Joints in Custom Accessories
Snap-fit joints are a game-changer for custom 3D-printed accessories, especially in gaming and hobby projects. These clever mechanical connections turn static objects into modular, adaptable systems that can be assembled, customized, and reconfigured to suit individual needs. By eliminating screws, glue, or other fasteners, snap-fit joints offer strong and dependable connections while simplifying the assembly process. This opens the door to designs that are not only functional but also flexible enough to meet a variety of user demands.
Gaming accessories are a perfect match for snap-fit designs. These items often need to be portable, adjustable, and easy to fix. Snap-fit joints make it possible to quickly assemble and reconfigure items like dice towers that collapse for transport or card holders that expand to accommodate more players. These joints allow accessories to serve multiple purposes without making the assembly process overly complicated - anyone can handle it.
Modular Systems for Customization
Snap-fit principles shine when applied to modular systems, offering users the ability to mix and match components to create personalized setups. Instead of building a single, static accessory, you can design a collection of interlocking parts that come together in various ways. This approach empowers users to assemble exactly what they need for each gaming session or hobby activity.
One of the keys to successful modular design is standardizing connection points. When all snap-fit joints share the same dimensions and engagement mechanics, components can easily connect with one another. This makes it simple for users to start with a basic set and gradually expand their collection, knowing everything will work together seamlessly.
Think about how different gaming scenarios might call for unique setups. A dice tower system, for instance, could include interchangeable wall panels with various themes, letting players customize the tower to match the mood or style of the game.
Modularity also makes upgrades and repairs more practical. If a single piece wears out or breaks, it can be replaced without needing to scrap the entire accessory. This not only keeps costs down but also reduces waste, ensuring the product remains functional for the long haul.
Examples of Snap-Fit Applications
Real-world examples highlight the practical benefits of snap-fit designs in custom accessories. Take dice towers, for instance. Many use snap-fit walls for quick assembly and easy breakdown, making them ideal for storage and transport. These joints need to be sturdy enough to handle the impacts of rolling dice yet simple to detach when needed.
One company, 3rd Prints, has embraced this concept with their line of customizable gaming accessories. Their vampiric-themed dice tower, for example, combines multiple functions into one cohesive design while maintaining a visually striking look for tabletop gamers. The snap-fit joints make it easy for users to assemble and personalize the accessory to their liking.
Fidget toys are another great example of snap-fit technology in action. These toys often feature interlocking parts that can be rearranged into different shapes, relying on snap-fit joints for smooth movement and secure positioning. Articulated designs use flexible yet durable joints to create engaging desk toys that can withstand constant use.
Keychain accessories also benefit from snap-fit designs. They allow users to swap decorative elements or add functional components, such as collectible figures with interchangeable accessories or poses. The modular nature of these designs makes it easy to personalize and update keychains without hassle.
What makes these applications so effective is their focus on user interaction. Whether it’s assembling gaming accessories before a session, enjoying the smooth operation of a fidget toy, or customizing a keychain with ease, snap-fit joints enhance both functionality and creativity. They simplify assembly and repair while giving users the freedom to personalize their accessories in ways that fixed designs simply can’t match.
Preparing and Printing Snap-Fit Designs
Getting your snap-fit design ready for 3D printing involves carefully choosing the right material, adjusting print settings, and applying finishing techniques. Poor preparation can lead to brittle failures, while proper methods ensure your snap-fit connections are strong and durable.
Turning a digital design into a physical object requires precise control over material properties and print orientation. Since 3D-printed parts have directional strength, the combination of material and orientation plays a big role in whether your snap-fit flexes properly or breaks under stress.
Material and Print Orientation
Once you've nailed the design phase, it's time to focus on how material properties and print settings affect snap-fit performance. Choosing the right material is critical. Nylon (PA12), ABS, and PETG are popular choices because they strike a good balance between flexibility and strength, reducing the chances of brittle failure during repeated use.
- Nylon (PA12) is highly regarded for its toughness and fatigue resistance, making it ideal for snap-fits that will be flexed often.
- ABS offers solid impact strength and works well for general-purpose applications.
- PETG stands out for its flexibility and chemical resistance, making it a great choice for durable snap-fits.
On the other hand, PLA should be avoided for snap-fit designs. Its brittleness makes it prone to cracking, especially after repeated flexing.
| Material | Flexibility | Durability | Snap-Fit Suitability |
|---|---|---|---|
| PLA | Low | Brittle | Poor (not recommended) |
| ABS | Moderate | Good | Good |
| PETG | High | Good | Very Good |
| Nylon (PA12) | Very High | Excellent | Excellent |
Print orientation is just as important as material choice. For cantilever snap-fits, a horizontal orientation with the cantilever parallel to the build plate is preferred to maximize strength. If a vertical orientation is unavoidable, minimize deflection by designing the part with enough width to compensate for reduced strength.
Snap-fit areas should use 100% infill to prevent breakage during use. If printing the entire part with full infill feels wasteful, slicing tools like Cura's support blocker can help. You can limit 100% infill to only the snap-fit areas, saving material and print time without sacrificing strength where it matters most.
Finally, adjust tolerances based on your printer's capabilities. Prototyping and testing are essential steps to fine-tune the fit and ensure your design performs as expected.
Post-Processing for Better Performance
Once printed, post-processing can improve the functionality and appearance of your snap-fit joints. Techniques like sanding, media blasting, and polishing can smooth out rough 3D prints, removing layer lines and imperfections that might cause binding or uneven engagement.
For SLA prints, proper washing and curing are key to achieving the desired material properties. Uncured resin remains soft and tacky, which can undermine snap-fit functionality. Follow your resin manufacturer's curing guidelines to avoid issues - undercured parts may be too flexible, while overcured ones can become brittle.
Advanced methods like vapor smoothing for ABS or applying coatings can further enhance durability and aesthetics. However, these processes can affect part dimensions. For instance, acetone vapor smoothing can create a glass-like surface on ABS but may alter dimensions by about 0.1–0.2 mm. Similarly, coatings or plating can add material, impacting the fit of snap-fit joints. Always test the fit after post-processing and make design adjustments if needed.
When removing supports near snap-fit features, use flush cutters and gentle sanding to preserve critical dimensions without damaging the part.
Snap-fit development often requires several test cycles. Start with conservative tolerances and gradually refine them as you learn how your material, printer, and post-processing techniques influence the final result.
At 3rd Prints, we apply these best practices to create customizable gaming accessories and fidget toys. By combining thoughtful material selection, precise printing, and careful post-processing, we deliver durable and functional snap-fit connections designed for repeated use and personalization.
Conclusion
Creating effective snap-fit 3D-printed parts is all about balancing engineering principles, material properties, and hands-on testing. The secret to durable and functional joints lies in understanding how stress distribution, material flexibility, and print orientation work together.
Key Takeaways
To achieve success, focus on managing stress with tapered cantilevers, choose flexible materials like ABS or PETG instead of brittle options like PLA, and refine tolerances through iterative testing. Every 3D printer, material, and design combination behaves differently, so it's wise to start with conservative tolerances and adjust them based on testing results.
These principles are a great starting point for experimenting with snap-fit designs.
Start Experimenting
With these basics in mind, 3D printing offers endless opportunities for creating snap-fit designs. Modular systems, for example, let users easily customize and upgrade components, whether you're working on gaming accessories, fidget toys, or other projects. This approach not only boosts product versatility but also encourages user interaction and creativity.
Begin with simple cantilever designs and gradually explore more complex geometries as your skills grow. Experiment with different materials and tweak your designs with each iteration - every prototype teaches you something new about stress management, material limits, and manufacturing constraints.
Snap-fit joints provide quick, secure connections without the need for extra fasteners. Whether you're designing prototypes or finished products, mastering these techniques unlocks exciting possibilities for creating items that are easy to assemble, customize, and maintain.
Start small, test thoroughly, and let what you learn guide you toward more ambitious designs. With thoughtful planning, smart material choices, and consistent testing, you'll create snap-fit joints that hold up through countless uses.
FAQs
What should I consider when selecting a material for 3D-printed snap-fit parts?
When selecting a material for 3D-printed snap-fit parts, it’s important to prioritize flexibility, durability, and ease of printing. Each material - PLA, ABS, and PETG - offers distinct advantages depending on your project. For instance, PLA is simple to print but lacks flexibility, making it less suited for parts that need to bend. On the other hand, ABS and PETG provide greater flexibility and impact resistance, making them better choices for snap-fit designs.
Think about how the part will be used. Will it need to handle frequent assembly and disassembly? Will it face challenges like heat or moisture? Testing prototypes with various materials can help you strike the right balance between strength and flexibility to meet your specific requirements.
How can I design snap-fit joints in 3D-printed parts to ensure durability and repeated use?
To build snap-fit joints that can handle repeated use, it's all about precision and choosing the right materials. Flexible options like TPU or nylon work well because they offer elasticity and can resist wear over time. If you're using more rigid materials, make sure to carefully calibrate the joint dimensions to prevent stress fractures from forming.
In your design, include rounded corners and fillets to minimize stress points, and add slight tolerances to ensure the joint assembles and disassembles smoothly. Testing prototypes is key - adjust the fit and performance based on real-world trials to fine-tune your design.
By focusing on these elements, you'll create snap-fit joints that are not only functional but also durable, enhancing the reliability and usability of your 3D-printed creations.
What are the common challenges in designing snap-fit joints for 3D printing, and how can you address them?
Designing snap-fit joints for 3D printing can be a bit challenging. Factors like material properties, the precision of your printer, and how stress is distributed across the joint all play a role. But with a few smart strategies, you can tackle these challenges effectively:
- Choose the Right Material: Opt for materials that offer flexibility and durability. For example, PLA+ and PETG are excellent choices because they can withstand repeated use without cracking or losing their shape.
- Dial in Your Tolerances: Your printer’s accuracy matters a lot here. Design with clearances in mind - typically, a gap of 0.2 to 0.5 mm between parts works well. To get it just right, print small test pieces and adjust as needed.
- Minimize Stress Points: Sharp corners in your design can act as stress concentrators, leading to cracks or breaks. To avoid this, use rounded edges or fillets wherever possible. These simple tweaks help distribute stress more evenly.
By paying attention to these details, you can design snap-fit joints that are not only functional but also built to last in your 3D-printed creations.
